Description

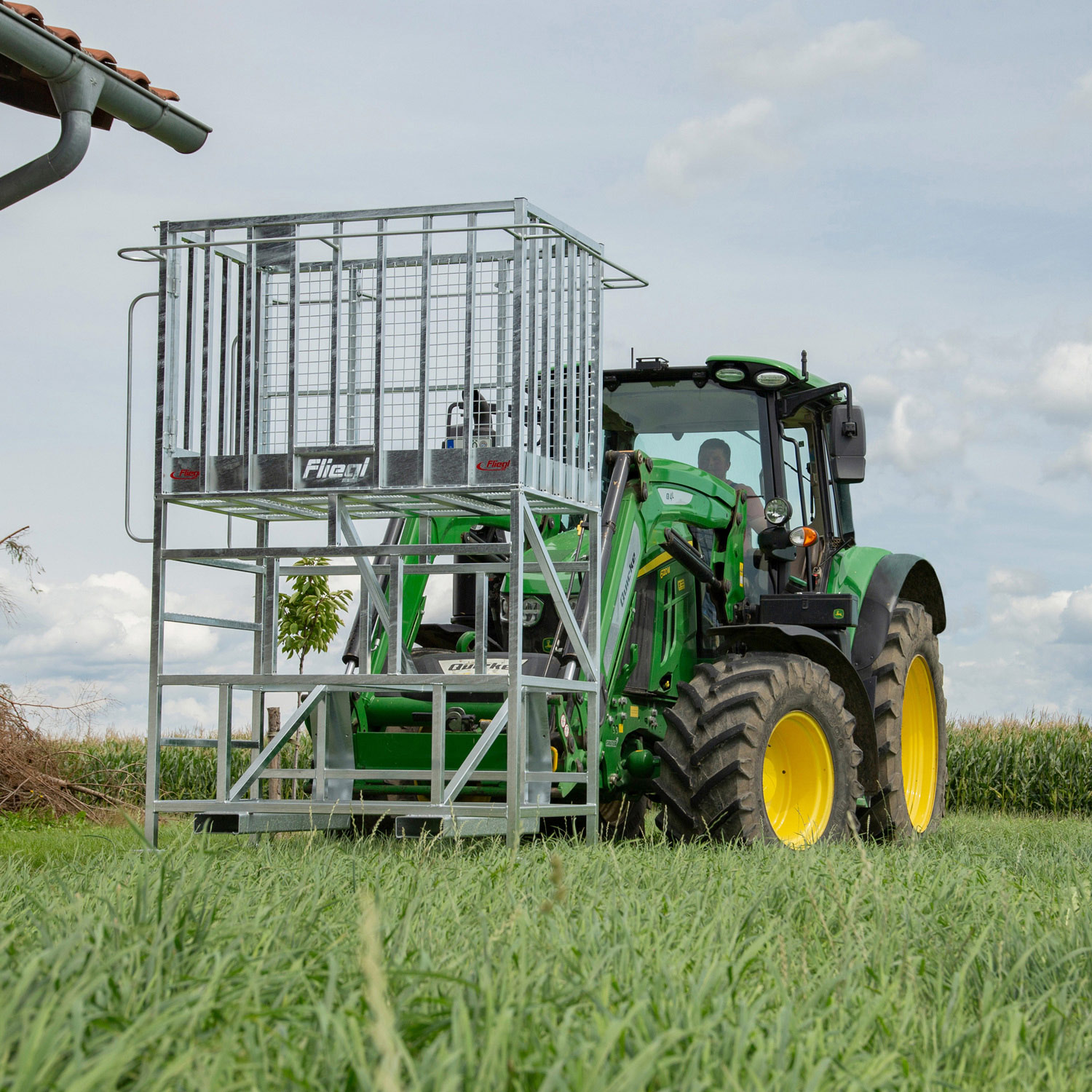

Work platform »Maxi«
Attachment to Euronorm
The professional in the work platform range offers a height of approx. 1.40 metres – for safe and comfortable work at particularly high altitudes!
Our hot-dip galvanized work platforms offer a wide range of applications:
Assembly, repairs, cleaning work, painting work on walls and ceilings, etc.
Features
» EC pre-certified
» Height gain: 1.40 m
» Non-slip grid on the bottom
» Working height with front loader: max. 7000 mm
» With tool tray as standard
» Side entry
» Fully galvanized version
Technical details
» Standard with Euronorm mount
» Load capacity: approx. 250 kg
» Basket (L x W x H): 1570 x 920 x 1100 mm
» Elevation: 1400 mm
» Working height: 2500 mm
» Weight approx. 240 kg
Please note
» Hose rupture protection must be available on the customer's side!
» An individual acceptance with the existing tractor including front loader must be carried out by the customer!
The following points must be observed with the carrier device
» Stability
» Automatic parallel guidance
» Locking of the tilt function
» Throttling of lifting and lowering speed
» Pipe rupture protection on the lifting cylinders
» Lifting height max. 10 m
» Emergency lowering for lifting heights over 7.5 m
» Radio communication at lifting heights above 7.5 m (or poor visibility)
